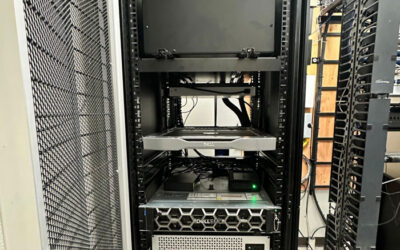

Case Studies
Educational Environment

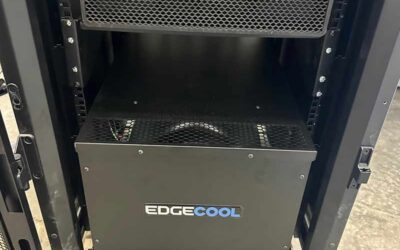

Across a K–12 school district, reliable connectivity isn’t just a convenience—it’s foundational to daily operations. Phones, internet access, and campus-wide Wi-Fi all depend on MDF (Main Distribution Frame) rooms, which act as the central nervous system for each school’s network.
Commercial Office Space

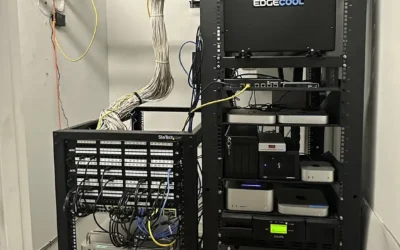

EdgeCool’s ability to move from the 8th floor to their final location on the 22nd floor in a proposed 6 – 9 months timeframe was a significant benefit. The cost efficiency of a portable solution like EdgeCool to cool down their temporary server room, and then move it to their final location, was a key factor in the decision-making process.
Product Specifications
| UNIT TYPE |  EVAPORATOR |  CONDENSER |
| Model Number (sold separately) | A5 | F5 |
| Electronic Control | Programmable | |
| Electrical Charateristics | ||
| Voltage Requirements (60 Hz) | 1 Phase, 115 V | |
| Total Power Consumption | 1.5 kW | |
| NEMA Plug Configuration | 5-20P | |
| Cooling Capacity and Power Consumption | ||
| Evaporator: 95°F @ 32% RH / Condenser: 81°F | ||
| Total Cooling Capacity | 15,400 Btu/h | |
| 4.5 kW | ||
| Sensible Cooling Capacity | 13,600 Btu/h | |
| 4.0 kW | ||
| Power Consumption | 1.5 kW | |
| Refrigerant | ||
| Type | R410-A | |
| Factory Charge Amount | 1.65 lb | |
| Operating Conditions (Min-Max) | 65°F @ 50% RH - 113°F @ 30% RH | |
| Max Airflow | 520/340/210 CFM (high/mid/low) | 765 CFM (1 speed) |
| Enclosure Dimensions | 17 x 33 x 13 in (8U Rack Space) | 17 x 34 x 16 in (9U Rack Space) |
| Max. Sound Level | 68/60/49 dB(A) (high/mid/low) | 70/72dB(A) (with duct/without duct) |
| Net Weight | 57 lb (26 kg) | 108 lb (49 kg) |
Specifications subject to change without notice. |
||
Evaporator Accessories
| NO. | PART NAME | DESCRIPTION | PART NUMBER |
| 1 | Evaporator Rack Mount Kit | Rackmounts Evaporator unit inside standard 19-in. Electronics Industries Association (EIA) rack. Includes, stays, brackets and bolts. (Does not include bolts and nuts to connect to vertical mounting rails) | 484009-1560 |
Condenser Accessories
| NO. | PART NAME | DESCRIPTION | PART NUMBER |
| 2 | Condenser Rack Mount Kit - Internal | Rackmounts Condenser unit inside standard 19-in. Electronics Industries Association (EIA) rack. Includes, stays, brackets, screws, nuts and bolts. (Does not include bolts and nuts to connect to vertical mounting rails) | 484009-1580 |
| 3 | Condenser Rack Mount Kit - External | Rackmounts Condenser unit on top of standard 19-in. Electronics Industries Association (EIA) rack. Includes, stays, brackets, screws, nuts and bolts. (Does not include bolts to connect to rack top panel) | 484009-1570 |
| 4 | Condenser Mount Rails - External & Internal | Rackmount adapter rails for deep racks, used with accessory No. 2 or 3 | 484009-1630 |
| 5 | Air Plenum Kit | Plenum for return air to Condenser. Includes 12-in duct clamp. | 484009-1590 |
| 6 | Self-Supported Duct | 12-in diameter white, plastic duct that extends from 6.5 to 10-ft in length. (Includes clamp) | LA481744-0410 |
| 7 | Flexible Air Duct | 12-in diameter wire-reinforced, accordion-style duct in 10-ft length for Condenser air exhaust. (Includes clamp) | LAY45771-0060 |
| 8 | Celling Tile, 12-in hole, plastic | 24-in x 24-in plastic white tile with 12-in hole for exhaust air self-supported duct. | LA146373-8280 |
| 9 | Ceiling Tile, 12-in hole, metal | 24-in x 24-in sheet metal tile with 12-in hole and built-in flange for exhaust air flexible duct kit. | 484490-1030 |
| 10 | Exhaust Diffuser | Diverts exhaust air away from intake air, used for low profile ceilings or industrial areas. Exhaust diffuser cannot be used for Condenser installation inside the rack. | 484009-1610 |
| 11 | Exhaust Flange Kit | Flange to duct exhaust air away from Condenser. Includes 12-in. duct clamp. | 484009-1600 |
Other Accessories
| NO. | PART NAME | DESCRIPTION | PART NUMBER |
| 12 | Connection Cable - Extension | Wire Harness A - Power is used when the EdgeCool Condenser unit is installed remotely from rack (> 9 ft. from Evaporator unit). Cable length: 10 ft. | 481950-4100 |
| 13 | Connection Cable - Extension | Wire Harness B - Signal is used when the EdgeCool Condenser unit is installed remotely from the rack (> 9 ft. from Evaporator unit). Cable length: 10 ft. | 481950-4110 |
| 14 | Insulation | For server rack insulation/condensation prevention and to improve airflow within the rack. | 484009-1620 |
| 15 | Pump Adaptor Kit | Attaches condensate pump (NOT included) to Evaporator unit. Includes bracket and electrical connector. | 484009-1640 |
EdgeCool brings “best value” in server-cooling for any environment. Get efficiency that pays you back in dollars saved. Let our EdgeCool technical expert spec a system for your environment.
